How to Connect DVR/NVR on Computer Software CMS?

CMS can help you to manage your DVR/NVR both locally and remotely. But before adding your DVR/NVR to CMS,
please go to the Main menu–Info–Version to make sure NAT status is connected. If you have a problem, please click this link for help.

https://help.annke.com/hc/en-us/articles/360000250141-What-to-do-if-DVR-or-NVR-can-t-connect-to-internet-successfully-

Here is new CMS software for Windows computers.

https://download.annke.com/document/Computer_Software/General_Bate_CMS_V3.1.0.9.T.20190306.exe

Then you can follow the steps below to add NVR/DVR to your CMS.

1 Download CMS and install it on your computer according to the instruction in the download file.

2 Double click the icon to open CMS, the default User Name is super, the password is blank (no password).

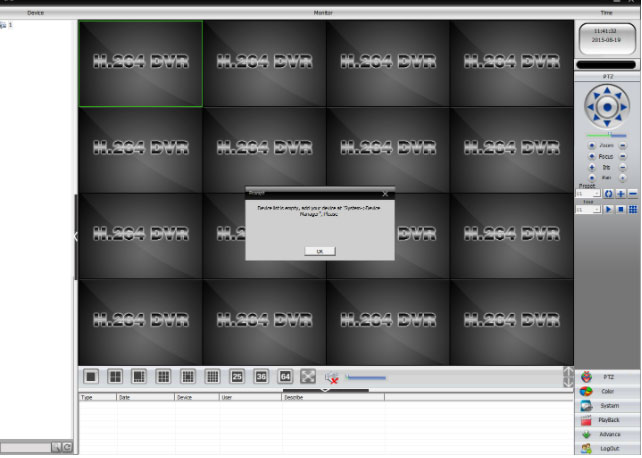

3 For the first time login, you will see the interface as below.




4 To add DVR/NVR, you can click the System menu on the bottom right corner. Then go to Device Manager, click ADD AREA to create a zone.

Name the zone yourself and click OK.


5 After adding area, click the area name you created then click on mceclip3.png to add your DVR/NVR.

Device Name: name it yourself

Login type: choose Cloud

Serial ID: Here is a method to find Serial ID.

https://help.annke.com/hc/en-us/articles/360000248422-Where-to-find-the-serial-number-and-QR-code-of-system-and-NAT-status-

User Name/Password: default is admin and no password, same as your DVR

Click “ OK” after you have done the above parameters, you could double click to open this device.




6 After you add your DVR successfully, you can view and manage your DVR on CMS.





7 Here is the introduction to the CMS interface.




Note: If you have a problem to add DVR/NVR to CMS, please double-check the connection between

your DVR/NVR and the Internet and upgrade your CMS to the latest version.
