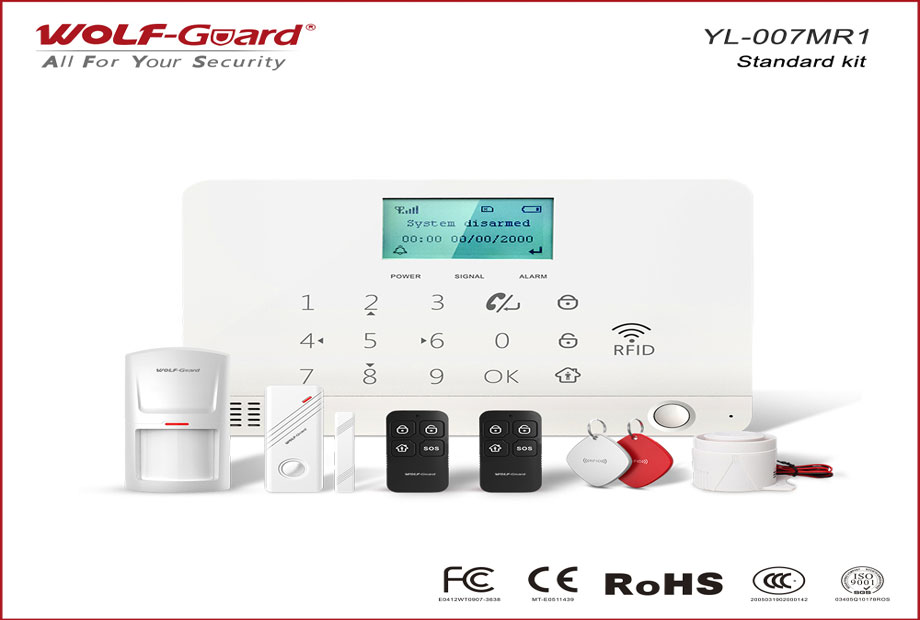

Wolf-Guard MR1 All Guide

1. 128*64 lattice LCD screen with clock display;

2. 2 wired and 10 wireless defense zones, each zones support maximum 10 sensors;

3. Support maximum 10 remote controls and 10 RFID cards;

4. One relay switch, it will be connected when alarming;

5. Built-in high volume speaker, and intelligent digital voice announcer;

6. 10-second voice message recording;

7. Can reset 6 phones numbers, when alarming, system will make audio call to these numbers automatically;

8. Can reset 3 SMS numbers, when alarming, system will send SMS, timely arm and disarm;

9. Can be used as a wireless telephone by using keypad to make calls;

10. One-key-control: away arm, home arm, arm by remote controller or telephone

11. SOS, fire, gas, door, hall, window, balcony and boundary places alarm;

12. Real-time, delay, 24 hours, bypass defense zones programming function;

13. Wireless learning code: easy to add additional wireless accessories;

14. Remote control the device to arm, disarm, monitor and intercom by phone;

15. Record checking: the device can store 30 alarm records;

16. Different alarm status: away arm, home arm, delay arm and timely arm;

17. Alarm call has priority, even when the number of the device is busy;

18. SMS alert for power failure or recovery, SMS alert for RFID card operation;

19. Built-in battery: automatically recharge;

20. Menu display IMEI code.

Technical Parameters:

Items Parameters
Input Voltage AC=100V-240V±10%, DC 12V/1A
Standby Current <20mA
Alarm Current <400mA
Wireless Frequency 315/433(Default)/868/915 MHz,
PT2262/EV1527, 4.7MΩ
2G Mode 850/900/1800/1900MHz
Wireless Receiving Sensitivity 5mV/m
Anti-interference 1V/m (frequency range: 20-1000MHz)
Siren Volume 110dB
Wireless Sensors 100pcs
Remote Controls 8pcs
RFID Cards 10pcs
Working Temperature 0℃~40℃
Working Humidity ≤90% (no fog)
