Paradox Alarm SP Series Installation Guide (PDF)

by

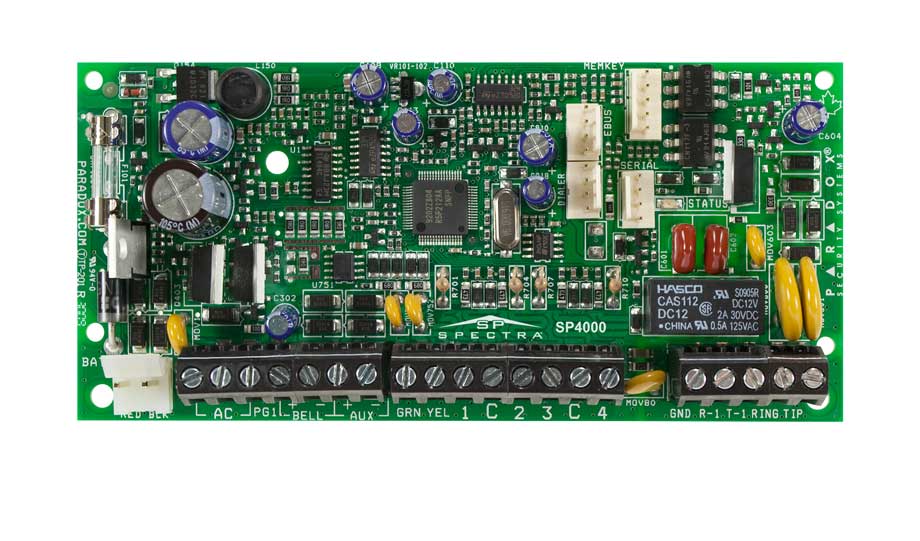

Spectra combines innovative features with an advanced communication bus for a unique expandable security system. Through its communication bus, Spectra can be expanded via wireless and wired expansion modules and a variety of accessory modules. With its reliable communication technology, flexible expansion and great-looking keypads, Spectra is an ideal security system for any residential or commercial installation that requires up to 32 zones of protection.

The Spectra SP series’ outstanding reliability easily expands to provide you with more features, such as StayD, more on-board zones (expandable up to 32), more on-board PGMs (expandable up to 16), and support for the Cellular Modules (PCS Series), Plug-In Voice Dialer (VDMP3) and Internet Module (IP150+). With their in-field firmware upgrade capability, the Spectra SP series allows installers to upgrade their system without hassle — quickly and easily. And to further simplify installation, every Spectra panel can be configured using easy-to-follow program menus via a keypad or remotely via the BabyWare PC software.
Feature SP4000 SP5500 SP6000 SP65 SP7000
StayD Check Mark Check Mark Check Mark Check Mark Check Mark
Maximum Zones* 32 32 32 32 32
On-board Zones 4 (8 with ATZ) 5 (10 with ATZ) 8 (16 with ATZ) 9 (18 with ATZ) 16 (32 with ATZ)
Expansion Zones 24 24 24 24 16
Keypad Zones 15 15 15 15 15
Partitions 2 2 2 2 2
User Codes 32 32 32 32 32
PGMs 12
(1 on-board)		 16*
(2 on-board)		 16*
(2+2** on-board)		 16*
(3 on-board)		 16*
(4 on-board)
PGM +/- Trigger – – Check Mark Check Mark (via BabyWare) Check Mark
Supported Cameras – 15 15 – 15
Siren Wired Wired / Wireless with RTX3 Wired / Wireless with RTX3 Wired / Wireless with RTX3 Wired / Wireless with RTX3
Alarm Relay – – 1** – 1
Event Buffer 256 256 256 256 256
Wireless Expansion check gray check gray check gray check gray check gray
2-Wire Smoke Detector Input – – Check Mark – Check Mark
GPRS / GSM Module (PCS Series) Check Mark Check Mark Check Mark Check Mark Check Mark
Compatible with IP150+ Check Mark Check Mark Check Mark Check Mark Check Mark
Compatible with VDMP3 Check Mark Check Mark Check Mark Check Mark
(via PCS250)		 Check Mark
Patented 2 opto coupler dialer circuit Check Mark Check Mark Check Mark – Check Mark
In-field Firmware Upgradeable Check Mark Check Mark Check Mark Check Mark Check Mark
* Any of which can be wireless
** Optional



[wp-embedder-pack width=”100%” height=”800px” download=”all” download-text=”” attachment_id=”716″ /]
