AHD MOBILE DVR User Manual

AHD MOBILE DVR User Manual, Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity, 8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output, 8CH local recording with 1080N resolution in real time..

Power:

  • Professional In-Vehicle power design,8-32V DC Wide Voltage Range
  • Multi protection circuits like under-voltage, short, reversed plug-in
  • Smart power management system, shutdown under low voltage, low consumption

Data Storage:

  • Special file management system to encrypt and protect the data
  • Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
  • Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
  • Support 2.5 inch HDD/SSD, maximum 2TB
  • Support SD card storage, maximum 256GB
  • Support hard disk heating

Transmission Interface:

  • Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
  • Support GPS/BD optional, high sensitivity, fast positioning
  • Support wireless download by WiFi, 802.11b/g/n, 2.4GHz

AHD MOBILE DVR

User Manual

  

.

9708C%E5%89%8D45 488w213h

.

.

.

Chapter 1 Overview

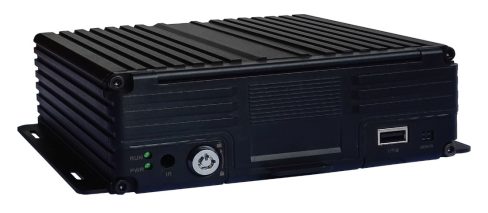

MR9708C is a DVR designed for Analog HD vehicle monitoring. With built-in high performance image processor and advanced H.264 video compression technology, it provides AHD video recording, storage and playback solution. It has built-in 3G/4G/WiFi module (optional) for remote monitoring, analysis and management. It comes with smart power management system which can recognize the power type automatically. When detected the battery’s voltage is lower than the gaven value, the device will shutdown automatically and keep ultralow standby consumption.

Chapter 2 Quick setup

1Device Installation

Please refer to “AHD MOBILE DVR Hardware User Manual (MR9708C)” for the hard disk installation and cables connection.

2. User Login

Right click the mouse, you will call out the login interface, please input your UserName, Password, and select your language, click “OK” to login the menu. (The default UserName is admin, without Password), see as following:

QQ截图20161216093917

User Login Interface

.

Right click the mouse, select “Menu” to start setup in the menu, see as following:

QQ截图20161129163751

Figure 1. System Menu

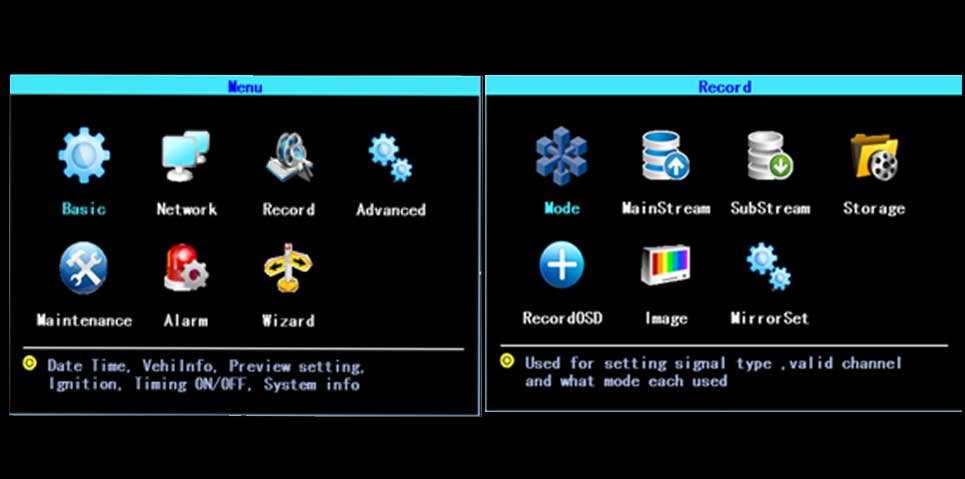

“Menu” is the primary menu of the system setup and control, see as following:

QQ截图20161129161603

.

Figure 1. Primary Menu

3Set up the System time

Path: Basic->DateTime, see as following:

.

QQ截图20161129161856

Figure 2. System date and time

TimeSYNC: Date and Time can be synchronized with GPS/BD

4Set up cameras

Path: Menu->Record->Mode. Please set up your cameras’ SignalType, Valid/Invalid. The DVR works with both AHD and general cameras. If you use AHD cameras, please select the first Type, if you use general cameras, please select the third Type, if you use both of general and AHD cameras, please select the second Type. See as following:

.

QQ截图20161129162059

Figure 3. Recording setting

.

QQ截图20170119162921

Figure 4. SignalType setup

PS: If your cameras don’t display image on the monitor, please check this setup.

5Wizard

Path: Menu->Wizard. This Wizard will help you to quick set up the device connect with the server.

5.1 Vehicle Information setup

QQ截图20161129162532

Figure 5. Vehicle information setup

The DVR is using “Device ID” to connect with the server, so please input the correct DeviceID which was registered on the server for your device. The user can modify the VehicleName and PlateNumber according to their requirement. The PlateNumber is the vehicle’s plate number, and it will be displayed in the video.

5.2 DiskManagement

Disk need to be formated in the device when using it for the first time. If the disk was not detected by the device, please check the disk lock and make sure it is well locked

.

QQ截图20161129162657

Figure 6. Wizard-DiskManagement

5.3 3G/4G Setup

The device will detect the 3G/4G ModuleType automatically. Please insert the right SIM card which corresponding with the ModuleType detected. Please consult your SIM card carrier or search on internet to make sure you put the correct parameters (DialNumber, APN, UserName, Password). If you use VPN, please consult your telecom carrier to get the correct parameters.

QQ截图20161129162818

Figure 7. 3G/4G setting

5.4 WIFI Setting

The device can save maximum 6 WiFi ESSID (Access Points). It will search, match, connect, and switch automatically. Click the corresponding blank to start WiFi setup. Then click “Search” you will see the available WiFi around your area, select the one your want to connect and input the password and save it.

.

QQ截图20161129163038

Figure 8. WIFI setting list

5.5 Server setting

IP (or Domain) is your server’s IP (or Domain), the Port should be same with your server setup.

.

QQ截图20161129163228

Figure 9. Wizard-Server setting

5.6 NetState

Path: Menu->Network->NetState. You can check the state of the network connection of your device here.

Server: Online, it means the device connected with the server.

.

Picture 13 269w174h

Figure 10. NetState

.

Chapter 3 System Menu

QQ截图20161129163751

Figure 11. System menu

.

1.1 Video Playback

The device supports one channel video playback, Select “Playback” in the System menu, then you will get the video searching interface, please search the video according to your requirement.

PrintScreen-1484835473

Figure 12. Video searching

.

The days in yellow are with recorded video. The blue parts in the time line bar are with recorded video. Please move the cursor of your mouse at the corresponding channel and time, and then left click it to replay the video.

.

If you want to view the video of AV5-AV8 Road, please click on the right and left arrow keys on the right side of the screen, it will show the AV5-AV8 video channel

PrintScreen-1484835486

Figure 13. Video searching

.

.

1.2 Video Backup


Figure 14. Video Backup

You can backup the video with an USB drive. There are two backup modes: “Normal backup” and “Event backup”

.

PrintScreen-1480411810

Figure 15. Video file list

Select the video file which you want to backup and then click “Backup”, remove your mouse and insert your USB drive, then the backup will start.

2Basic Setting

The basic setup includes the very basic setup items such as DateTime, Vehicle Information, and Preview etc., See as following:

QQ截图20161129164726

Figure 16. Basic setting

2.1 Date Time setting

QQ截图20161129161856

Figure 17. Date Time setting

Time synchronization: The system’s date and time can be synchronized with GPS/BD.

1.2 Vehicle Information

Picture 1 281w171h

Figure 18. Vehicle Information

Device ID: It is the ID used to connect your device with the server. It should be the same ID which you registered your device on the server.

.

2.3 Preview setting

  QQ截图20161129184237

Figure 19. Preview setting

The interface can be set up after the boot screen distribution, open screen polling and delay screen display, the device supports a variety of screen type display 1/2/3/4/8/9.

QQ截图20170119162822

Figure 20. Preview OSD

OSD: On Screen Display. You can select some information to display on the preview screen (the displayed information is for preview, not for recording)

.

2.4 Video Output

.

  QQ截图20161129184353

Figure 21. Video Output

2.5 On/Off setting

On/Off “Ctrl” setting is for starting on and shutting down the device automatically WHEN THE DEVICE IS ON STANDBY AFTER ACC IGNITION OFF. You can set up three time segments.

ACC Delay: You can set up the device to keep working for a gaven time period after the vehicle ACC ignition off.

.

QQ截图20161129184429

Figure 22. On/Off Control setting

.

The On/Off “Volt” setting is for setting the voltage to shut down and start on the device, this feature can avoid the device drained the vehicle’s battery.

The device will detect the current voltage automatically, when the vehicle’s battery voltage is lower than the Shut.Volt, the device will shut down automatically to avoid drained the battery. When the voltage is higher than the PowerVolt, the device can be startted on.

QQ截图20170119163036

Figure 23. On/Off Voltage setting

.

2.6 System setup

QQ截图20161216094104

Figure 24. System Setup

2.7 System Information

System information includes: Device Model, Serial Number, Hardware & Firmware version etc.

QQ截图20170119162849

Figure 25. System Information

3Network setup

Network setup: This interface is used to set up the necessary parameters to connect the device with the server

QQ截图20161129170258

Figure 26. Network Setup

3.1 Server setup

IP/Domain is the WAN static ip or domain of your device’s server.

QQ截图20161129171145



Figure 27. Server setup

3.2 3G/4G Setup

The device will detect the 3G/4G ModuleType automatically. Please insert the right SIM card which corresponding with the ModuleType detected. Please consult your SIM card carrier or search on internet to make sure you put the correct parameters (DialNumber, APN, UserName, Password). If you use VPN, please consult your telecom carrier to get the correct parameters.

  QQ截图20161129171612

Figure 28. 3G/4G setup

3.3 WIFI setting

The device can save maximum 6 WiFi ESSID (Access Points). It will search, match, connect, and switch automatically. Click the corresponding blank to start WiFi setup. Then click “Search” you will see the available WiFi around your area, select the one your want to connect and input the password and save it.

%E5%9B%BE%E7%89%87 1 270w175h

Figure 29. WIFI Setting List

You can input the ESSID of the WiFi AP but you can also click “Search” to search the available WiFi ESSIDs around your area.

.

QQ截图20161129171858

Figure 30. WIFI Searching result

.

%E5%9B%BE%E7%89%87 1 280w198h

Figure 31. WIFI setting

Input the password and select the IP type and then click “OK”

3.4 Network State

You can check the state of the network connection of your device here. Server “Online” means the device connected with the server succesfully.

Picture 34 273w177h

Figure 32. Network State

4Recording Setup

Recording setup includes Mode, Main Stream, Sub Stream, Recording OSD, Image, Mirror recording setting.

QQ截图20161129162059

Figure 33. Recording setting

4.1 Recording Mode setting

.

QQ截图20170119162921

Figure 34. Recording Mode setting

.

Please set up your cameras’ SignalType, Valid/Invalid. The DVR works with both AHD and general cameras. If you use AHD cameras, please select the first Type, if you use general cameras, please select the third Type, if you use both of general and AHD cameras, please select the second Type.

4.2 Main Stream

Main Stream will be stored in local disk. This interface shows the current Main Stream setting and the corresponding storage size, you can click any line to set up the corresponding parameters.

QQ截图20170119163101

Figure 35. Main Stream List

QQ截图20161129172425

Figure 36. Main Stream AV setting

Bit is adjustable between 1024Kbps-4096Kbps (6 classes image quality).

4.3 Sub Stream

SubStream is used for network transmission and backup in local disk

QQ截图20170119163127

Figure 37. Sub Stream setting

QQ截图20161129172633

Figure 38. SubStream AV setting

If you use 4G network, you can set up the resolution to be D1, so you can get better effect when you viewing the live video remotely on PC or cell phone.

4.4 Recording storage

QQ截图20161129172756

Figure 39. Recording storage

The device supports dual storage (or you can say “Mirror storage), means you can store the same recording in both HDD and SD at same time. For example, you can store the main stream in HDD and sub stream in SD card, when the HDD has error and doesn’t work, you can still get backup video from the SD card (sub stream).

4.5 Recording OSD (On Screen Display)

You can set up the information you want to be recorded in the video.

.

QQ截图20161129172916

Figure 40. Recording OSD

4.6 Image setting

Image setup is used to adjust to camera’s image effect, please set up it carefully.

.

QQ截图20170119165828

Figure 41. Image setup

.

4.7 Mirror setting

This feature can turn over the camera’s image horizontally or verticaly (for both preview and recording)

QQ截图20170119163243

Figure 42. Mirror setting
5.Advanced setting  

This interface is used for UserManagement, Driving Habits monitoring, UART port setting, Temperature Sensor, Reverse Lines setting, displaying the text received from the server.

QQ截图20161129173310

Figure 43. Advanced setting

5.1 User Management

You can add, modify, delete users, and modify the login username and privileges.

.

QQ截图20161129173438

Figure 44. User Management

5.2 Driving Habits monitoring

(this feature is under developing)

.

QQ截图20161129173558

Figure 45. Driving Habits monitoring

5.3 UART setting

This device has 1 UART port (TTL). You can connect some peripheral devices such as TTS (Text To Speech), Network Pass Through etc with the DVR vai our UART convertor.

QQ截图20161129173701

Figure 46. UART setting list

5.3.1 UART-TTS

Select UART to get into UART setting interface.

Select “TTS” in the drop-down box of “Function”. Config the parameters as per the picture followed:

.

QQ截图20161129173759

Figure 47. UART setting

5.3.2 UART-Serial Net (Pass Through)

Select UART to get into UART setting interface.

Select “SerialNetPassThroughin the drop-down box of “Function”. Config the parameters as per the picture followed:

QQ截图20161129173922

Figure 48. UART setting

5.4 Reverse Camera

The DVR comes with Reverse camera function. Any channel can be used as reverse camera, click “Zone” to set up the reverse assistance lines.

QQ截图20161129174555

Figure 49. Reverse camera setting

PS: Normally we will select “On” at “AV OUT”. If you select “Off”, the screen will sleep when there is no operation for a while.

.

.

The assistance lines are adjustable (dragging the blue points)

%E5%9B%BE%E7%89%87 1 274w186h

Figure 50. Assistance lines setting

.

5.5  NetTextShow

The device can display and broadcast the text received from the server. (If you want broadcast the text, you need to connect TTS device with the DVR.)

QQ截图20161129184545

Figure 51. NetTextShow

You can set up the display time duration of the text.

QQ截图20161129184615

Figure 52. TTS broadcasting

If you waant to broadcast the text received by TTS device, please click Uart Set” to set up it first.

6Device Maintenance

Device Maintenance” includes the basic maintenance of the device such as Log searcing, Disk Management, Config parameter import/export, System Upgrading.

QQ截图20161129185223

Figure 53. Device Maintenance.

6.1 Log Inquiry

Inquiry the system’s running log according to the required Log Type and Time Range.

.

QQ截图20161129185411

Figure 54. Log inquiry

The log will record the device’s exception, local operation, system on/off, alarm information etc.

6.2 Disk Management

You can check the status of the disk here.

QQ截图20161129185607

Figure 55. Disk Management

The disk need to be formatted in the device when you use it for the first time.

6.3 Related with the Parameter

Import/Export is used to import/export the setup and config information for setup in batch.

After setted up one device, export the setup parameters with your USB disk, then insert the USB disk into other device’s USB port and re-power on the device, it will get the setup parameters utomatically. (If you don’t want to re-power on the device, you can import the setup paramaters in menu, see as followed)

.

QQ截图20161129185720

Figure 56. Import/Export

PLEASE USE THE RESTORE FUNCTION CAREFULLY TO AVOID THE LOST OF YOUR IMPORTANT DATA

6.4 System upgrading

Please format your USB disk as FAT32 type and copy the upgrading file to the root directory of the USB disk. Then re-power on the device, it will upgrade automatically. If you don’t want to re-power on the device, you can upgrade it in the menu “Import/Export”. Select the upgrading type, click OK, then insert the USB disk. The system will detect the USB disk and the file and then upgrade automatically.

QQ截图20161129185824

Figure 57. System upgrading

   .

QQ截图20161130104453

Upgrading progress

PS: You can insert the USB disk which with the upgrading file, and then re-power on the device, it will upgrade automatically. You can also upgrade the device remotely from PC CMS software if your device has 3G/4G or WiFi function.

7Alarm setting

Alarm setup interface includes the setting related to all alarm types, such as I/O alarm, Video Loss, Fatigue Driving, Over Speed, Disk error.

QQ截图20161129185940

Figure 58. Alarm setting

.

7.1 Input Alarm

The device has 4 alarm inputs, 2, 4 are positive trigger, 1, 3 are positive/negative trigger (optional)

   QQ截图20161129190157

Figure 59. Input Alarm list

Click the corresponding lines to setup

QQ截图20161129190359

Figure 60. Input Alarm setting

There are three input modes: high level, low level and open. For positive trigger, the normal trigger level is high, but if the reversed logic is enabled, the trigger level is changed to low level and open. It is same for negative trigger.



.

Alarm Input Trigger status list

Alarm Trigger

Positive trigger

Negative trigger

Reversed Logic

No

High level

Low level

Reversed Logic

Yes

Low level/Open

High level/Open

.

7.2 AlarmOut setting

You can set up the type of alarm output (interact, remote, manual), Manual is used to debug the device.

.

QQ截图20161129190938

Figure 61. AlarmOut Setting

QQ截图20161129191035

Figure 62. Alarm Out Types

7.3 Video Loss

Video Loss alarm will be triggered if there is no camera or wrong type camera were connected with a valid channel.

QQ截图20161129191741

Figure 63. Video Loss alarm setting

7.4 Fatigue Driving Alarm

The Fatigue Driving time is calculated since the device was started.

In this interface you can set up the fatigue driving time, to remind the driver to avoid fatigue driving.

.

QQ截图20161129191453

Figure 64. Fatigue Driving setting

7.5 OverSpeedAlarm

QQ截图20161129191611

Figure 65. OverSpeedAlarm Setting

7.6 DiskError

You can set up alarm when there is Disk Error detected by the device

.

QQ截图20161129191226

Figure 66. Disk Error setting

.

.

.

Chapter 4 Installation Warnings

For safely using and long service life, please respect these Warnings when insalling and using the device:

1. When you received the product, please open the box and check the device and accessories. If there is anything damaged or missing, please contact your seller.2. When installing and operating the device, please respect the standard of all electronics and the connecting requests of the vehicle and other devices

3. Please double check the input power voltage, it should be 8-36V DC, to avoid the damage caused by wrong voltage.4. The device should work in the permitted temperature and humidity.5. There should be enough space and fire resistant pipes on the external cables of the device to avoid electric leakage caused by abrasion and aging.

6. The installation and construction should be compliant with the standard of the government.

.

1 thought on “AHD MOBILE DVR User Manual”

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
